Connecting Elements

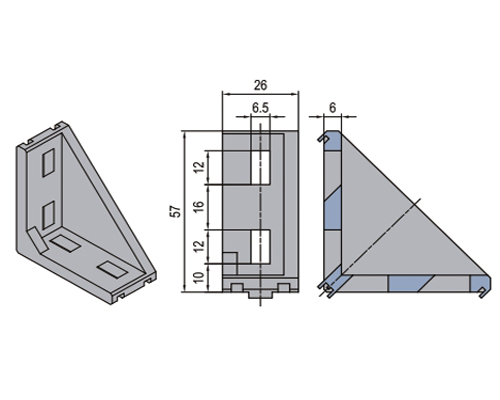

Die Cast Bracket-DB -30x30
Die Cast Bracket-DB -30x60
Die Cast Bracket-DB -40x40
Die Cast Bracket-DB -40x80
Die Cast Bracket-DB -45x45
Die Cast Bracket-DB -45x90
Die Cast Bracket-DB -60x60
Die Cast Bracket-DB -80x80
Die Cast Bracket-DB -90x90
| Description | Mass | Part No |
|---|---|---|
| Die Cast Bracket-DB30-30x30 | 21 | SMT3.21.30.3030 |
| Die Cast Bracket-DB30-30x60 | 53 | SMT3.21.30.3060 |
| Die Cast Bracket-DB40-40x40 | 50 | SMT3.21.40.4040 |
| Die Cast Bracket-DB40-40x80 | 125 | SMT3.21.40.4080 |
| Die Cast Bracket-DB45-45x45 | 72 | SMT3.21.45.4545 |
| Die Cast Bracket-DB45-45x90 | 145 | SMT3.21.45.4590 |
| Die Cast Bracket-DB30-60x60 | 120 | SMT3.21.30.6060 |
| Die Cast Bracket-DB40-40x40 | 260 | SMT3.21.40.8080 |
| Die Cast Bracket-DB45-90x90 | 390 | SMT3.21.45.9090 |
